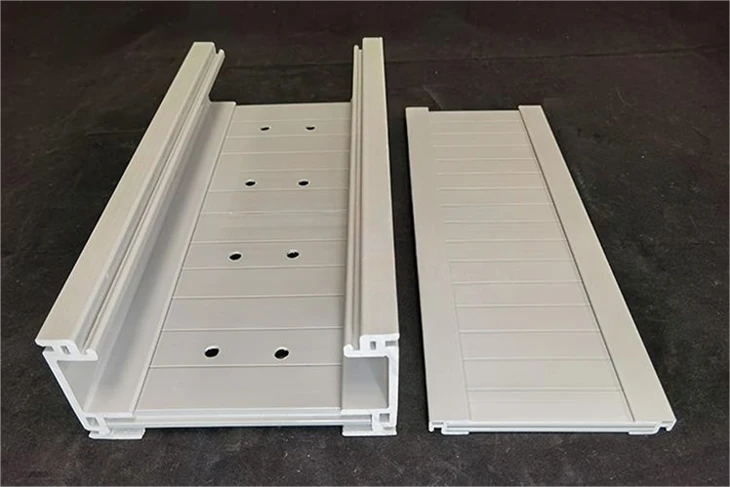

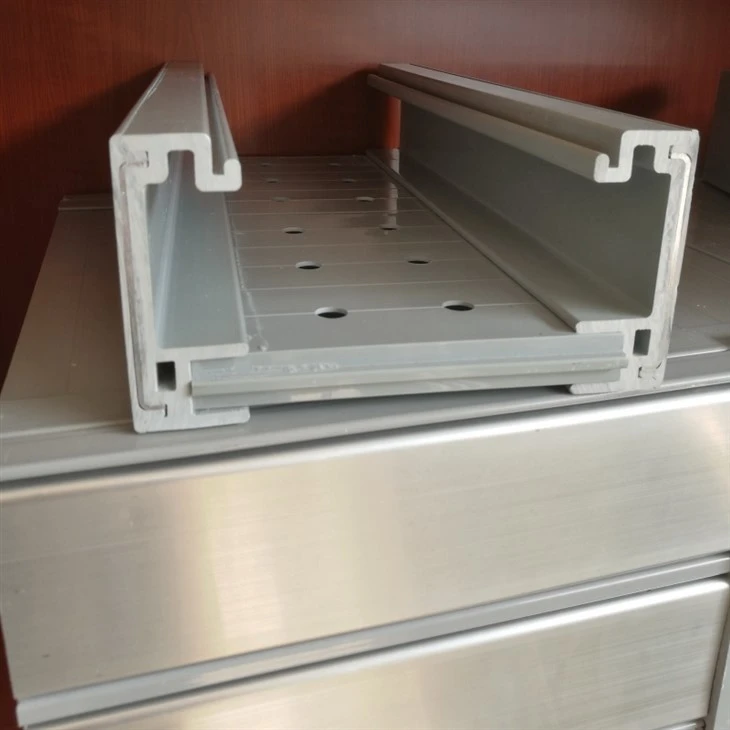

Polymer Cable Tray

Polymer cable tray is a cable laying equipment made of polymer materials (such as polyethylene, polypropylene, polyvinyl chloride, etc.), with excellent corrosion resistance, light weight and insulation performance. Its material can effectively resist the erosion of chemical substances such as acid, alkali, salt, etc., and is particularly suitable for highly corrosive environments such as chemical plants, sewage treatment plants, and coastal areas. Polymer cable tray is not only light and easy to install, but also has good wear resistance and electrical insulation performance, which is suitable for cable laying needs in the power field. In addition, its environmental protection and aesthetics make it an ideal choice for cable protection in the fields of industry, transportation and construction.

Product parameters

Product Name:	Polymer Cable Tray
Type:	cable tray/channel cable tray/perforated cable tray/tray type cable tray/tray cable/cable tray systems
Material:	PVC/PP/PE
Surface Treatment:	Surface Coating/UV-Cured Coating/Plasma Treatment/Corona Treatment/Polishing/Flame Retardant Treatment

Product Size

Width:	50-1200mm
Side Rail Height:	25-300mm
Length:	2000mm,3000-6000mm or Customization
Thickness:	0.6-3mm

Steel Thickness (Recommend)

1.0mm-Width:	50~100mm
1.2mm-Width:	100~150mm
1.5mm--Width:	200~500mm
2.0mm--Width:	600~700mm
2.5mm--Width:	800~1000mm
Customized according to customer requirements

Other Characteristics

Color:	As customer requirements
Certification:	CMA/ILAC-MRA/CNAS/CE
Application:	Wiring system,cable management,electromechanical system,construction industry and so on.
Non standard specifications are availabe according to customer's requirement.

Polymer cable trays

Polymer cable trays are made of composite materials such as fiberglass and PVC. Compared with metal trays, they are lighter, more corrosion-resistant, and more insulated and anti-static. They are suitable for harsh environments such as chemical and marine environments and precision electronics. They are flame-retardant, fire-proof, shock-resistant, and noise-reducing. They have low maintenance costs and are environmentally friendly and recyclable. They are ideal for scenarios such as power, rail transit, and data centers.

Lightweight And High Strength

Density is only 1/5 of steel, impact strength reaches 50kJ/m², and installation efficiency is increased by 60%.

Super Corrosion Resistance

Tolerant to pH2-12 acid and alkali environment, service life in chemical area exceeds 20 years (measured salt spray 5000h without corrosion).

Insulation And Flame Retardant

Dielectric strength>20kVmm, oxygen index ≥30, passed UL94 V-0 flame retardant certification.

Maintenance-free And Environmentally Friendly

No metal precipitation pollution, 100% recyclable, and comprehensive cost is 35% lower than metal.

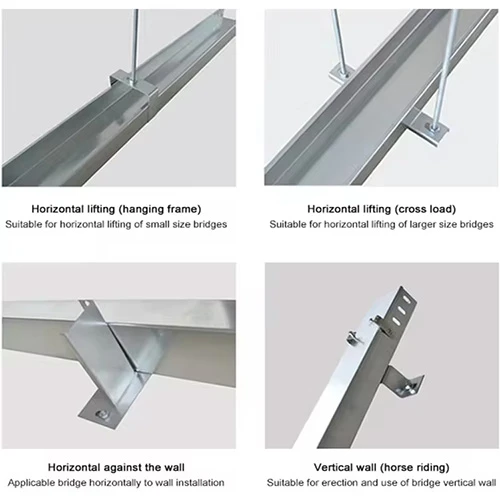

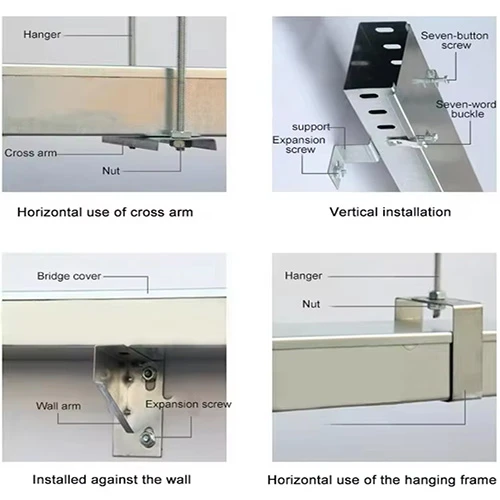

Installation of polymer cable tray

Precautions for installing polymer cable trays

Before installation: Check the quality of materials, confirm the ambient temperature (-20℃~60℃) and corrosiveness, and prepare non-metallic tools and insulating brackets.

During installation:

Bracket spacing ≤1.5-2m, with denser spacing at turns

Splicing leaves 5-10mm expansion joints, and uses special connectors

Strong and weak electricity layers (spacing ≥300mm), maintain insulation

Special environments:

Outdoors: Choose UV-resistant models, with brackets 200mm above the ground

Fireproof areas: Seal with fireproof materials, away from heat sources

Acceptance: Check horizontality (deviation ≤2‰), perform load and insulation tests.

Maintenance: Check fasteners every year, and clean chemical areas every six months.
