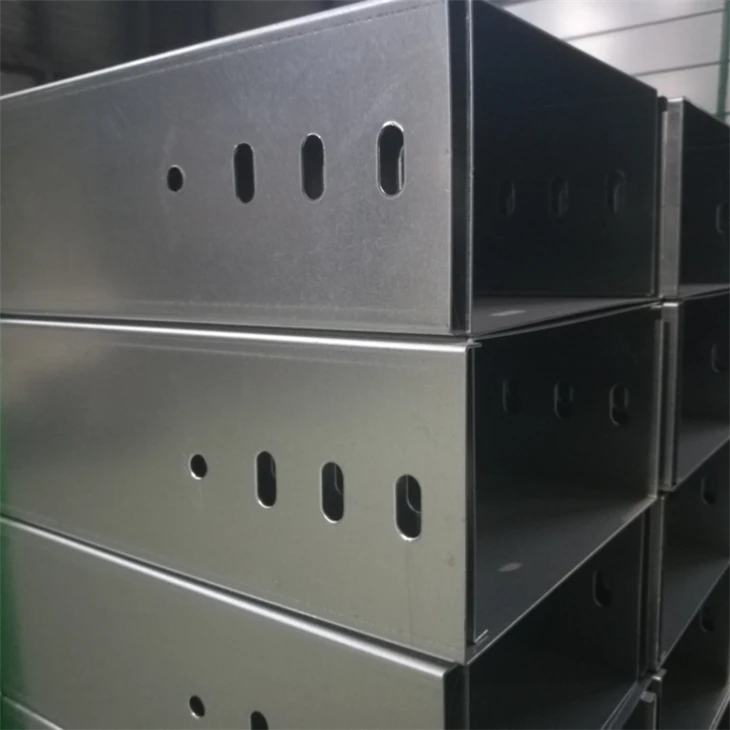

Product parameters
| Product Name: | Zinc-Aluminum-Magnesium Cable Tray |
| Type: | cable tray/channel cable tray/perforated cable tray/tray type cable tray/cable management tray/basket tray/tray cable/wire basket tray/wire basket cable tray |
| Material: | Hot-Rolled Steel |
| Surface Treatment: | Zinc-Aluminum-Magnesium Coating |
Product Size:
| Width: | 50-1200mm |
| Side Rail Height: | 25-300mm |
| Length: | 2000mm,3000-6000mm or Customization |
| Thickness: | 0.6-3mm |
Steel Thickness (Recommend)
| 1.0mm-Width: | 50~100mm |
| 1.2mm-Width: | 100~150mm |
| 1.5mm--Width: | 200~500mm |
| 2.0mm--Width: | 600~700mm |
| 2.5mm--Width: | 800~1000mm |
| Customized according to customer requirements | |
Other Characteristics
| Color: | As customer requirements |
| Certification: | CMA/ILAC-MRA/CNAS/CE |
| Application: | Wiring system,cable management,electromechanical system,construction industry and so on |
| Non standard specifications are availabe according to customer's requirement | |
Advantages of zinc-aluminum-magnesium cable tray
Super Corrosion Resistance
The zinc-aluminum-magnesium alloy coating has a salt spray resistance of more than 3,000 hours, which is 5-8 times that of hot-dip galvanizing, and is suitable for high-corrosion environments such as coastal and chemical industries.
High-strength Impact Resistance
Yield strength ≥350MPa, excellent resistance to mechanical damage, and can withstand heavy loads and extreme climatic conditions.
Self-repairing Properties
After the coating is damaged, the magnesium element will actively form a protective film to prevent the spread
of rust (scratch self-repair width ≤2mm).
Full Life Economy
The maintenance-free design makes the service life exceed 30 years, and the comprehensive cost is 50% lower than that of stainless steel, and 40% maintenance
cost is saved than hot-dip galvanizing.
Mixed installation scheme of brackets made of different materials
1.Mixed installation with carbon steel brackets
Required measures:
Insulate insulating gaskets (PTFE material is recommended, thickness ≥ 2mm)
Use stainless steel bolts (A2-70/A4-80 grade)
Apply conductive anti-corrosion paste (such as DOWSIL™ 7091) to the contact surface
Prohibited operations:
Direct welding connection (will cause damage to the coating)
Use galvanized steel bolts (prone to galvanic corrosion)
2. Combined with stainless steel brackets
Optimization plan:
Preferably use 316 stainless steel brackets (smaller potential difference)
The bolt hole needs to be enlarged by 0.5mm (to compensate for thermal expansion difference)
ZAM vs. hDG cable tray: analysis of the advantages of incision self-healing performance
The self-healing performance of zinc-aluminum-magnesium cable tray far exceeds that of hot-dip galvanized products. Its zinc-aluminum-magnesium ternary synergistic mechanism can form a composite protective layer at the incision. The anti-red rust time in the salt spray test is up to 1500 hours (hot-dip galvanizing only 200 hours), and the service life in C4 environment is 15-20 years. The incision can be self-repaired within 48 hours of processing, and the repair efficiency is still maintained at -30℃. The maintenance cycle in coastal areas is extended to 3 years/time, and the maintenance cost is reduced by 80
This product is particularly suitable for harsh environments such as offshore platforms and chemical plants. It has excellent vibration adaptability and low temperature performance, and the annual corrosion expansion of the incision is only 0.5mm (hot-dip galvanizing 3mm). We can provide professional life assessment reports based on ISO standards to customize the selection plan for you.
