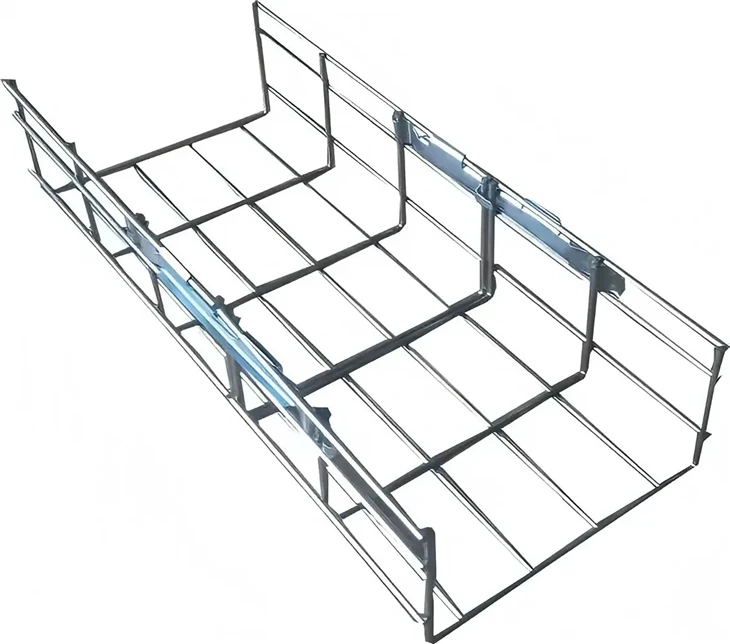

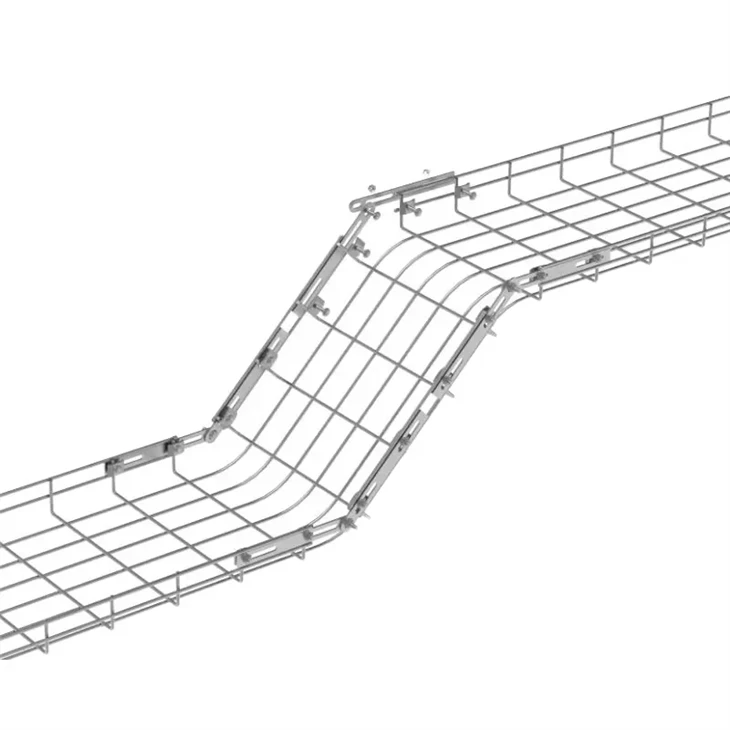

Product parameters
| Product Name: | Stainless Steel Cable Mesh |
| Type: | Cable Mesh/Wire Mesh Cable Tray/Cable Protection Mesh/Cable Tidy Mesh/Wire Cable Tray/Cable Wire Mesh/Mesh Cable/Wire Cable Mesh/Wire Mesh Cable/Stainless Cable Mesh/powder coated cable tray |
| Material: | 201 Stainless Steel/304 Stainless Steel/316 Stainless Steel/316L Stainless Steel |
| Surface Treatment: | Passivation |
Product Size
| Width: | 50-1200mm |
| Side Rail Height: | 25-300mm |
| Length: | 2000mm,3000-6000mm or Customization |
| Thickness: | 0.6-3mm |
Steel Thickness (Recommend)
| 1.0mm-Width: | 50~100mm |
| 1.2mm-Width: | 100~150mm |
| 1.5mm--Width: | 200~500mm |
| 2.0mm--Width: | 600~700mm |
| 2.5mm--Width: | 800~1000mm |
| As customer requirements | |
Other Characteristics
| Color: | As customer requirements |
| Certification: | CMA/ILAC-MRA/CNAS/CE |
| Application: | Wiring system,cable management,electromechanical system,construction industry and so on. |
| Non standard specifications are availabe according to customer's requirement. | |
Why choose stainless steel cable mesh?
Stainless steel (304/316 material) is naturally corrosion-resistant and does not require additional coating. It is suitable for extreme environments such as marine and chemical industries. The theoretical life span exceeds 50 years, far exceeding galvanized products.
The tensile strength is twice that of galvanized steel, the temperature resistance range is wide (-40℃~800℃), the seismic performance is excellent, and the cable displacement is reduced by 40%.
It has passed medical/food grade certification, no heavy metal pollution risk, 100% recyclable, and meets green building requirements.
It has its own electromagnetic shielding characteristics, supports direct welding of sensors, and adapts to the low-loss transmission requirements of 5G.
Although the initial investment is high, it is almost maintenance-free, with a service life of 50+ years, a high residual value recovery rate, and a lower overall cost.

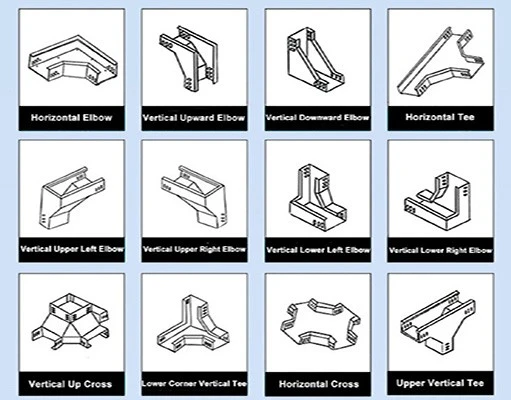

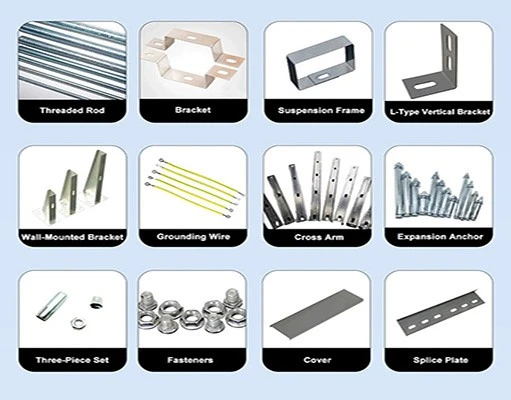

Cable Tray Accessories Display
Key points for installing stainless steel cable mesh
The installation of stainless steel cable mesh must follow professional specifications to ensure system reliability. Before installation, a laser rangefinder should be used to verify the on-site dimensions, check that the surface of the 316/304 stainless steel mesh cable and accessories is free of scratches, and prepare special installation tools (including nylon hammers, rubber gaskets, and torque limiting wrenches). The support brackets must be fixed with stainless steel expansion bolts of the same material, with a longitudinal spacing of ≤1.8m (increased to 1.2m in the heavy-load area), and the lateral horizontality deviation is controlled within 2mm/m.
Note when assembling the unit: When using the argon arc welding process to connect, argon protection must be filled in advance (flow rate 10-15L/min) to avoid weld oxidation; the snap-on connection requires the use of a matching silicone seal (temperature resistance -40℃~150℃); the bending radius at the bend is ≥8 times the cable diameter. When crossing the fire partition, a fireproof encapsulation system (fire resistance limit ≥2h) should be set up, and a rubber shock absorber (damping coefficient ≥0.15) should be installed at the interface with the vibration equipment.
The acceptance criteria are stricter than those of ordinary cable mesh: joint gap ≤1mm (detected with a feeler gauge), overall grounding resistance ≤1Ω (using 16mm² stainless steel braided belt), electrolytic polishing surface Ra≤0.8μm. After installation, the incision needs to be treated with passivation paste, and the pressure test should be completed within 48 hours (load 1.5 times the design load for 4 hours).
Special tips: It is forbidden to use carbon steel tools to knock directly, and anti-slip mats need to be laid for high-altitude operations; degreasing treatment is required before installation in the medical/food field (in compliance with FDA 21 CFR 178.1010 standards). It is recommended to use BIM prefabrication + laser positioning technology, which can reduce the amount of on-site adjustments by 60%.
