Product parameters
| Product Name: | Epoxy-Coated Cable Ladder |
| Type: | cable ladder/ladder-type cable tray/cable runway/wire cable ladder/cable support ladder/electrical cable ladder/electrical ladder trayheavy duty cable ladder/ladder type cable tray with cover/steel ladder tray |
| Material: | Cold-Rolled Steel/Pre-Galvanized/Hot-Dip Galvanized/Aluminum Alloy/Stainless Steel/Epoxy Coating/Additives |
| Surface Treatment: | Epoxy Spray Coating |

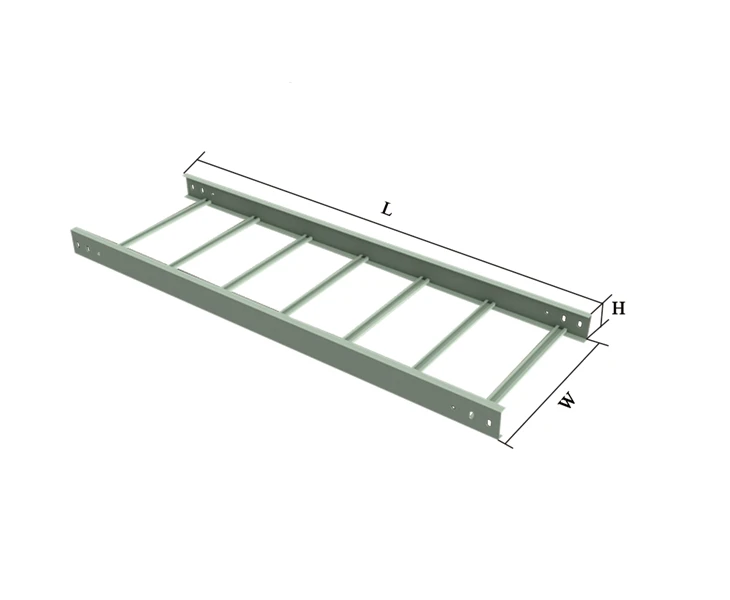

Product Size
| Width: | 50-1200mm |
| Side Rail Height: | 25-300mm |
| Length: | 2000mm,3000-6000mm or Customization |
| Thickness: | 0.6-3mm |
Steel Thickness (Recommend)
| 1.0mm-Width: | 50~100mm |
| 1.2mm-Width: | 100~150mm |
| 1.5mm--Width: | 200~500mm |
| 2.0mm--Width: | 600~700mm |
| 2.5mm--Width: | 800~1000mm |
| As customer requirements | |
Other Characteristics
| Color: | As customer requirements |
| Certification: | CMA/ILAC-MRA/CNAS/CE |
| Application: | Wiring system,cable management,electromechanical system,construction industry and so on. |
| Non standard specifications are availabe according to customer's requirement. | |
What Are The Advantages Of Epoxy-Coated Cable Ladders Compared To Cable Ladders Made Of Other Materials?
With its special spraying treatment process on the surface, the sprayed plastic cable ladder presents many unique advantages in comparison with cable ladders made of other materials such as steel, aluminum, and fiberglass.
The more comprehensive anti-corrosion performance is the highlight of the sprayed plastic cable ladder. The sprayed plastic layer on its surface forms a dense protective film, which can effectively isolate the erosion of water, air, dust and various corrosive media. Whether in a humid basement, a chemical workshop with acid and alkali mist, or an outdoor rainy environment, it can maintain a good anti-corrosion state. In contrast, ordinary steel cable ladders are prone to rust and require frequent maintenance; although aluminum cable ladders are protected by an oxide film, they may still be damaged in a strong corrosive environment; fiberglass cable ladders have good corrosion resistance, but are slightly insufficient in impact resistance, while sprayed plastic cable ladders can perform stably in a variety of complex environments and extend their service life.
In terms of appearance and environmental protection, sprayed plastic cable ladders also have more advantages. The spraying process can realize customization of multiple colors, and can choose the appropriate color according to the decoration style or functional requirements of the use scenario, so that the cable ladder is more coordinated with the surrounding environment and improves the overall aesthetics. At the same time, the powder coating used in the spraying process does not contain solvents, which reduces the emission of volatile harmful substances and is more environmentally friendly. However, the steel cable ladder has a single color, and the color selection of the aluminum cable ladder is relatively limited. Some traditional anti-corrosion-treated cable ladders may also have the problem of releasing harmful substances.
In addition, the spray-coated cable ladder performs better in insulation and protection of cables. The spray-coated layer has good insulation properties, which can reduce the risk of static electricity generated by friction between the cable and the ladder frame, and is especially suitable for laying cables with high insulation requirements. Moreover, the surface of the spray-coated layer is smooth and has a certain elasticity, which can reduce the friction and wear between the cable and the ladder frame during laying and use, and play a better protective role for the cable. In contrast, the surface of steel and aluminum cable ladders is harder. If they are not handled properly, there may be burrs, which can easily scratch the cable insulation layer; although the fiberglass cable ladder is insulated, it is brittle and the protection effect is relatively weak.
Applicable scenarios of Epoxy-Coated cable ladder
-
In industrial plants, whether it is the oily environment of a machinery manufacturing workshop or the acid-base mist environment of a chemical enterprise, the epoxy-coated cable ladder can cope with it easily. The epoxy-coated layer on its surface can effectively resist the erosion of oil stains, reduce the cleaning trouble caused by the adhesion of oil stains, and also prevent the corrosion of acid-base mist on the ladder frame, ensuring the safety and stability of cable laying, and providing reliable support for power and signal transmission in industrial production.
-
Epoxy-Coated cable ladders are also suitable for commercial buildings. Places such as large shopping malls and office buildings have certain requirements for aesthetics. Epoxy-Coated cable ladders can choose matching colors according to the architectural decoration style, so that they do not appear abrupt in hidden or semi-hidden spaces such as ceilings and mezzanines, which not only meets the functional requirements of cable laying, but also can be coordinated with the overall environment. Moreover, there is a large flow of personnel in commercial buildings, and the safety requirements for equipment are high. The insulation performance of the plastic-sprayed layer can reduce the risk of accidental electric shock.
-
In outdoor scenes, such as cable laying in road green belts and open-air parking lots, epoxy-coated cable ladders also perform well. It can withstand wind, sun, rain and snow erosion, and the epoxy-coated layer effectively prevents the ladder frame from rusting and aging. Compared with ordinary steel cable ladders, it can reduce damage caused by harsh outdoor environments, extend service life, and reduce the frequency and cost of outdoor maintenance.
-
In addition, in humid environments, such as basements and areas near toilets, the moisture resistance of the epoxy-coated cable ladder plays an important role, avoiding corrosion problems caused by long-term moisture and ensuring the structural strength and safety of the cable ladder.
How difficult is it to install and maintain Epoxy-Coated cable ladders?
From the installation point of view, the installation process of the plastic-sprayed cable ladder is similar to that of the conventional cable ladder, and the operation is not difficult. Its material is usually a steel base plus a plastic-sprayed layer, with moderate weight. No special heavy equipment is required for handling and erection, and it can be completed manually with conventional tools (such as wrenches, screwdrivers, etc.). During installation, the connectors (such as bolts, nuts, etc.) have good compatibility with the plastic-sprayed layer, and the connection difficulty will not be increased due to the surface treatment layer. In addition, the splicing and fixing methods of the ladder frame are simple and easy to understand, and construction personnel can operate proficiently after basic training. In contrast, cable ladders made of some materials (such as fiberglass) are brittle in texture, and special attention should be paid to avoid damage caused by collision during installation. The steel base of the plastic-sprayed cable ladder gives it a certain toughness, and it is more resistant to bumps during installation, reducing the risk of operational errors.
In terms of maintenance, the maintenance cost and difficulty of the plastic-sprayed cable ladder are also low. Because the surface plastic-sprayed layer has good corrosion resistance and wear resistance, it only needs to be simply cleaned regularly (such as every quarter or half a year) on a daily basis, and the surface dust and debris can be removed with a damp cloth or a soft brush, without the need for complicated maintenance procedures. If the plastic-sprayed layer is slightly damaged locally (such as a small scratch), it can be simply treated with a special repair paint to prevent the base from rusting. The repair operation is simple and does not require professional technicians. In contrast, ordinary steel cable ladders need to be regularly painted with anti-corrosion paint, with high maintenance frequency and cumbersome procedures; although aluminum cable ladders are easy to maintain, it is difficult to repair when the oxide film is damaged in a highly corrosive environment. Therefore, plastic-sprayed cable ladders can reduce maintenance investment in long-term use and are suitable for scenarios that require operation and maintenance efficiency.
