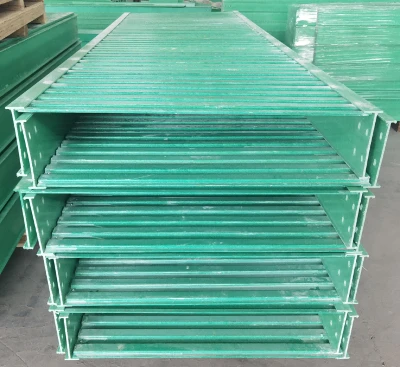

FRP (GRP) cable tray is a high-performance cable routing solution made of fiberglass reinforced polymer materials. Compared with traditional metal trays, FRP cable trays feature corrosion resistance, insulation, lightweight, fire retardancy and zero maintenance. They are widely used in chemical plants, sewage treatment projects, coastal areas, power plants and metallurgy industries with humid, salty and corrosive working conditions.
Schhow can supply FRP cable trays with various resin formulations to match different environmental corrosive levels, temperature requirements and budget demands, including UP-Ortho, UP-Isophthalic, VE, EP and Phenolic resins.. They are suitable for power cables, control cables and communication cables, providing excellent heat dissipation, dust protection, anti-interference and anti-aging performance.
Standard Sizes
Width: 100mm, 150mm, 200mm, 300mm, 400mm, 500mm, 600mm Height: 50mm, 100mm, 150mm, 200mm Standard length: 6000mm Custom thickness, non-standard width, height and length are available for different load and span requirements.
Complete Supporting Accessories
All matching accessories are made of the same FRP material to avoid galvanic corrosion and ensure overall durability.
- Connection Fittings: Horizontal Bend 90°/45°(HB 90°/45°) Horizontal Tee(HT)Horizontal Cross(HC) Vertical Inside Bend(VIB)
Vertical Outside Bend(VOB)Straight Reducer(SR)Vertical Right Down Bend(VRDB)Vertical Right Up Bend(VRUB)
- Covers: matching snap-on covers for channel and perforated trays for dust and waterproof protection
- Mounting Parts: FRP brackets and upright posts for wall, beam and ceiling installation
Auxiliary Parts: special bolts, nuts, pressure plates and dividers. Separate layout for strong and weak current cables avoids signal interference.
Product Features
- Excellent resistance to acid, alkali, salt fog and moisture, no rust or aging in harsh environments
- Full insulation, no electric conduction and no eddy current loss
- Light weight for easy transportation and fast installation
- Stable fire-retardant performance with customizable fire grades
- No painting and regular maintenance required, longer service life than steel trays
